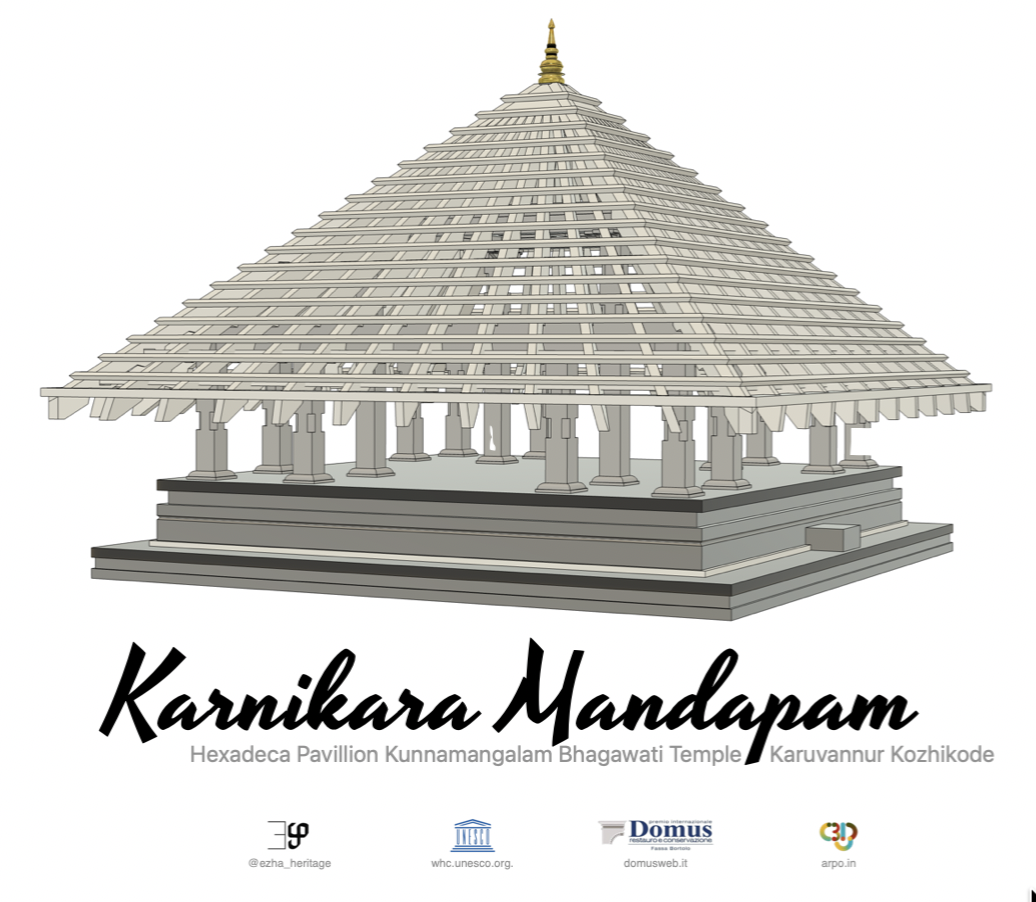

Karnikara Design (PDF)

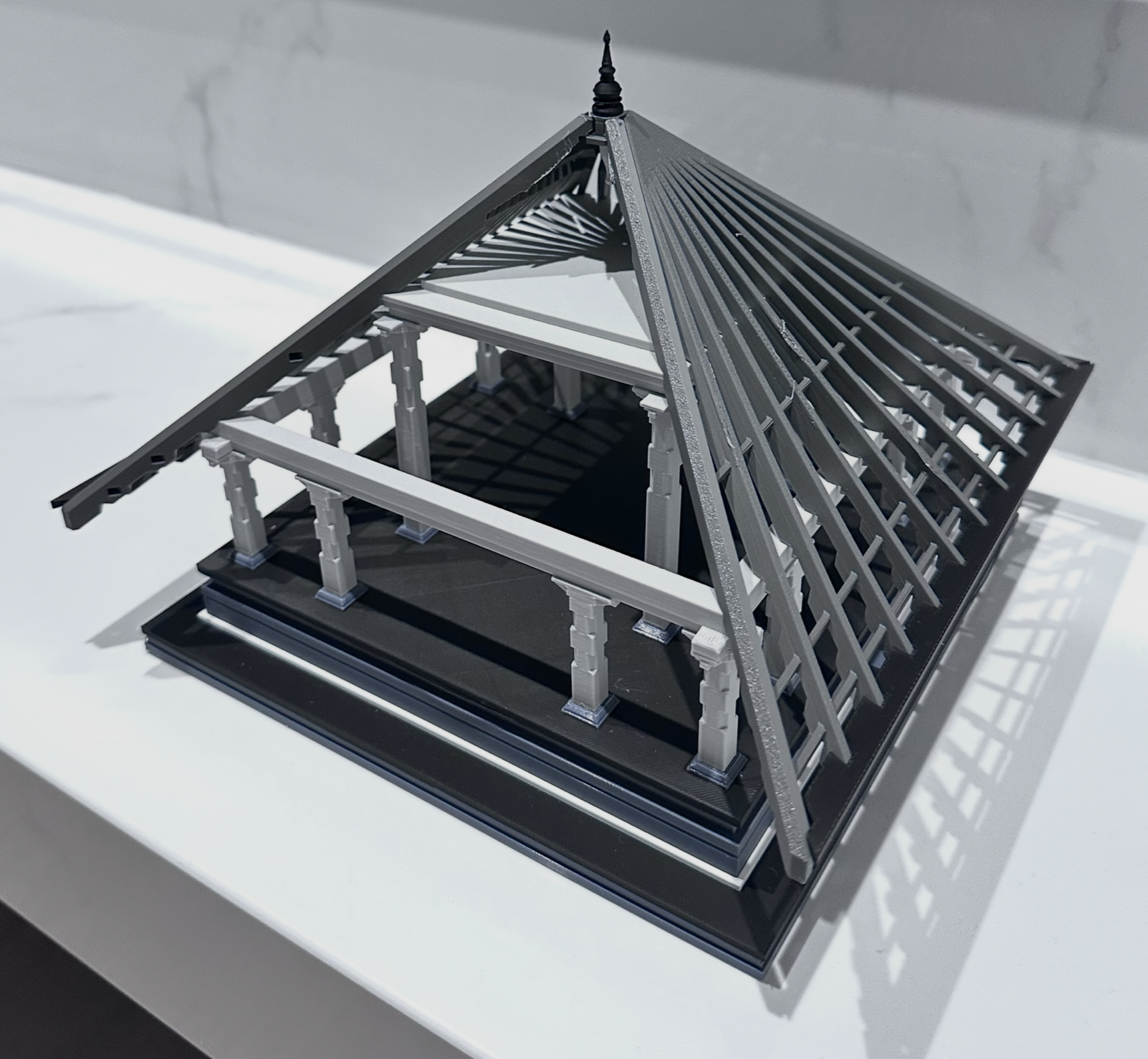

Karnikara Mandapam - 600 year old sixteen pillared wooden temple pavilion in Kerala, India. Restored by conservation group Ezha with ARPO and recognized by cultural heritage conservation awards.
Modeled in Autodesk Fusion for 3D printing with easy assembly.
Convert SVG files into a 3D STEP file for 3D printing.

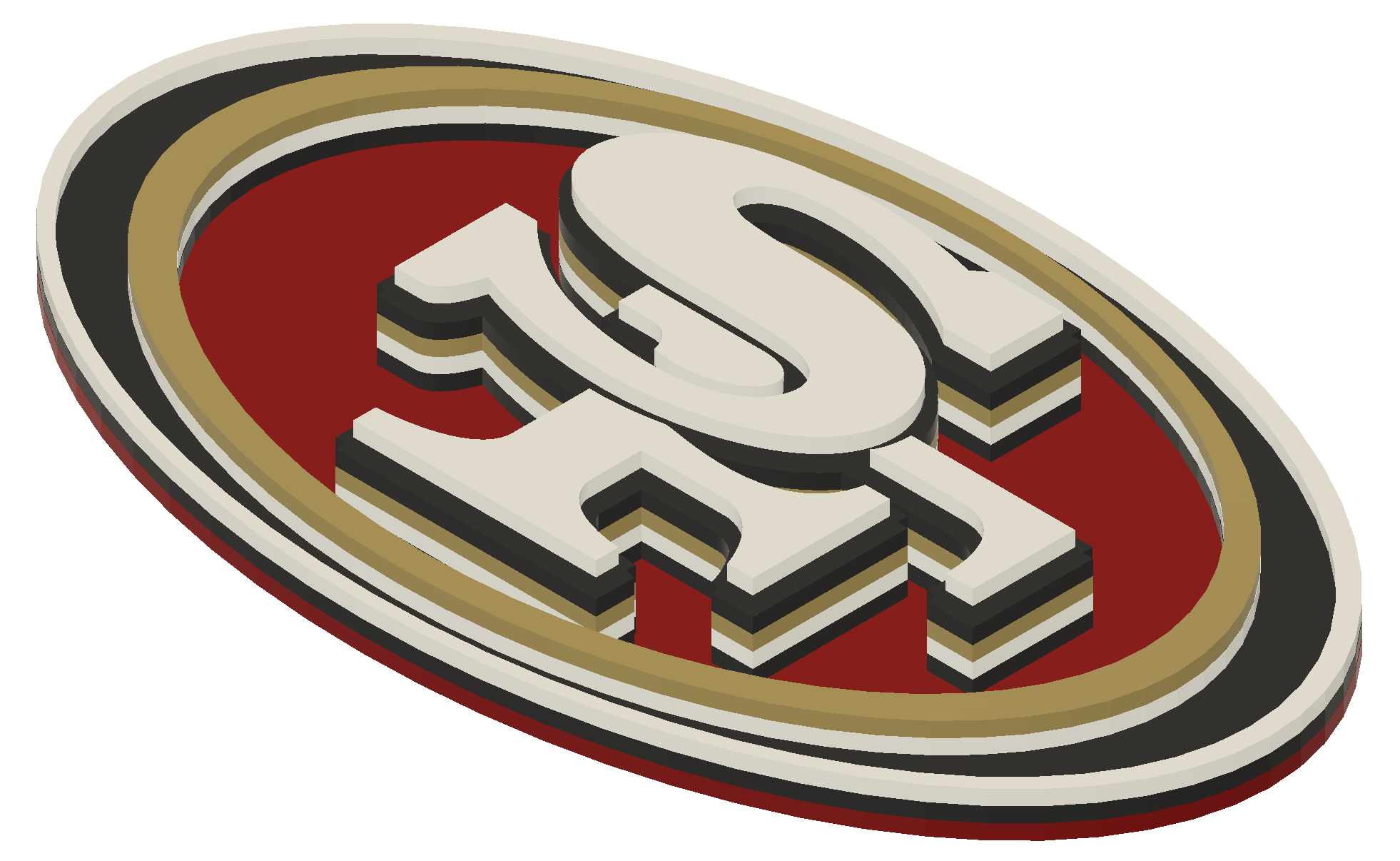

App$ mbos test.svg per-color-multi-layer.step

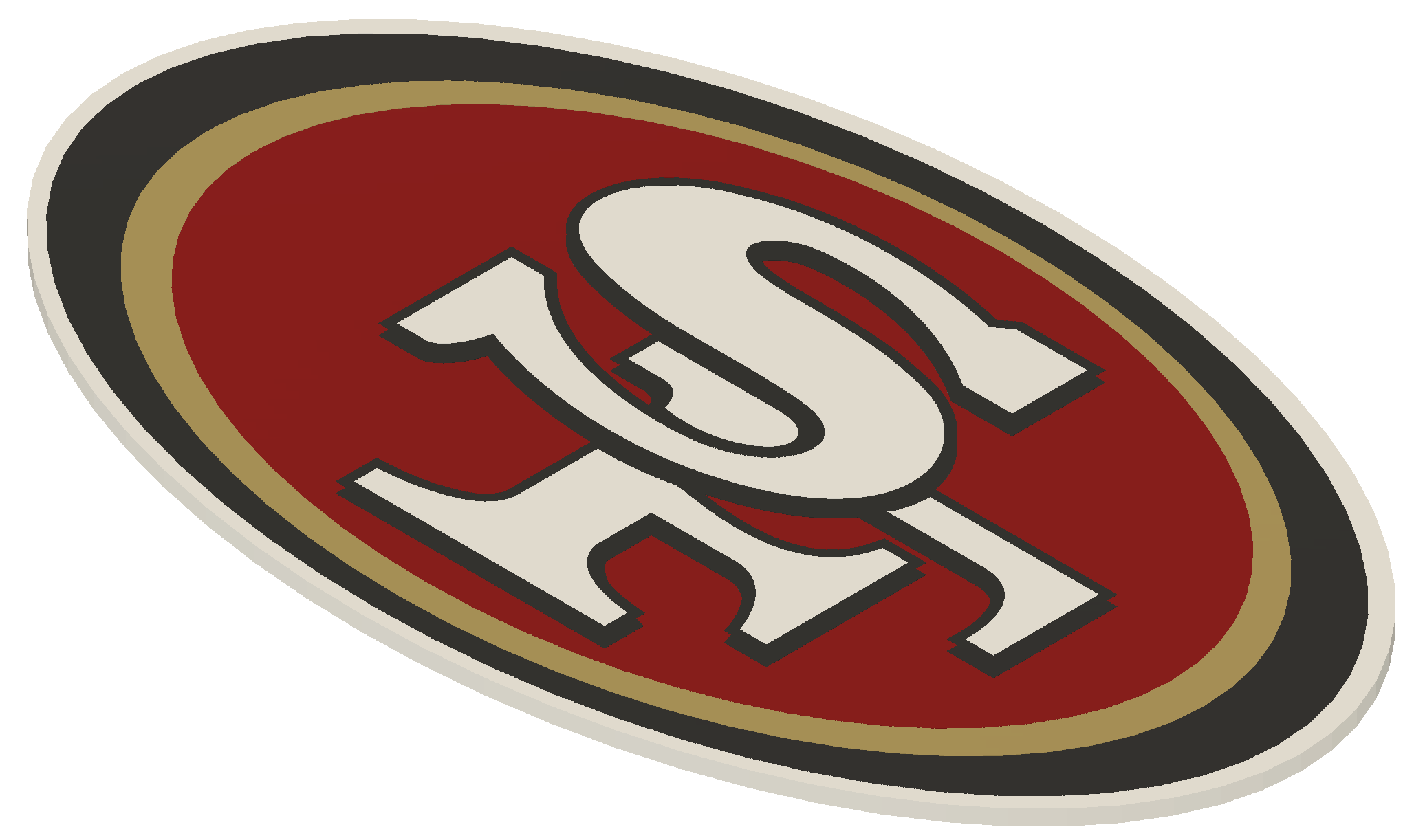

$ mbos test.svg single-layer.step --flat

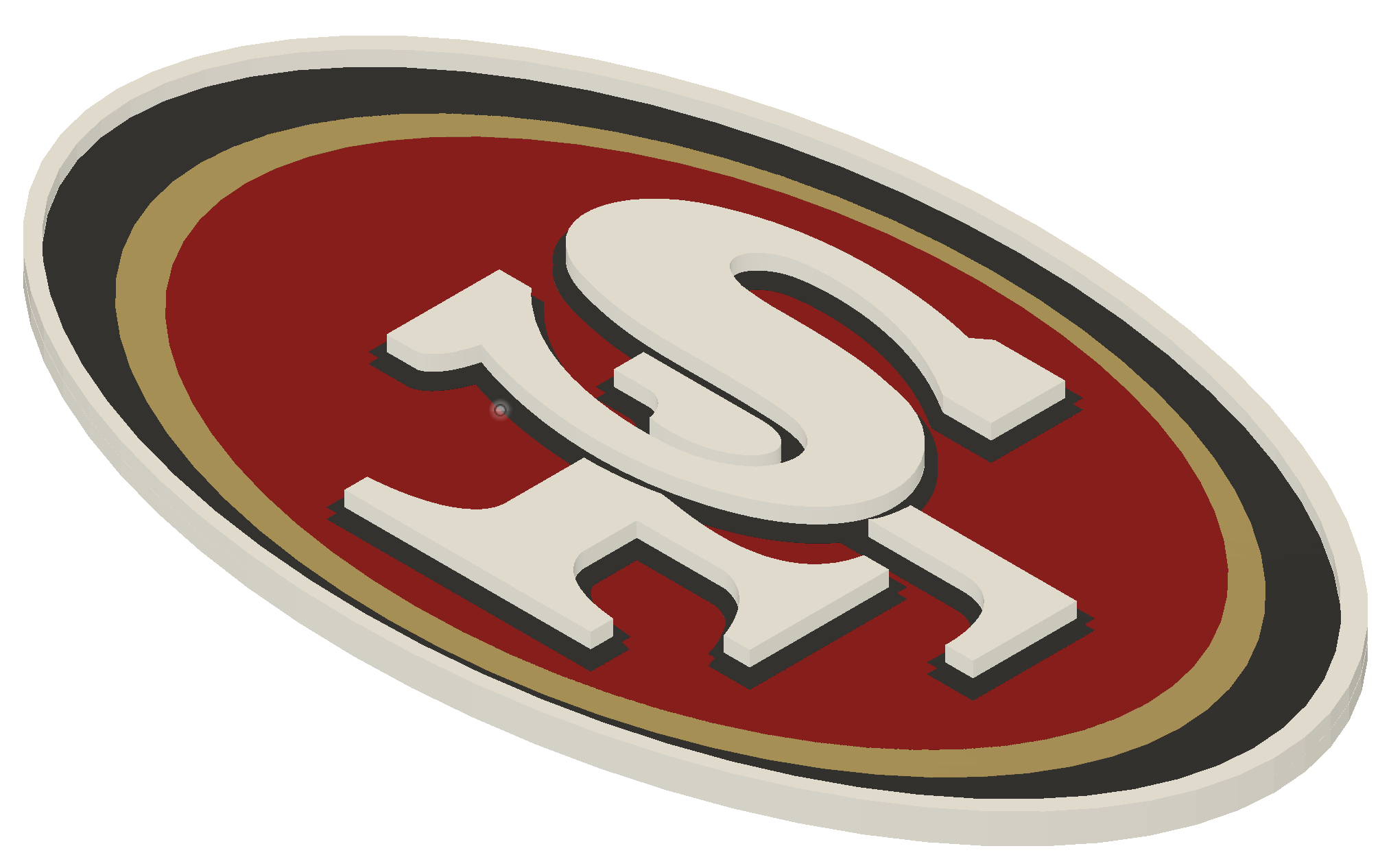

$ mbos test.svg multi-layer.step --flat 2 --flat-map "1:#fafafa,0:#aa0000"

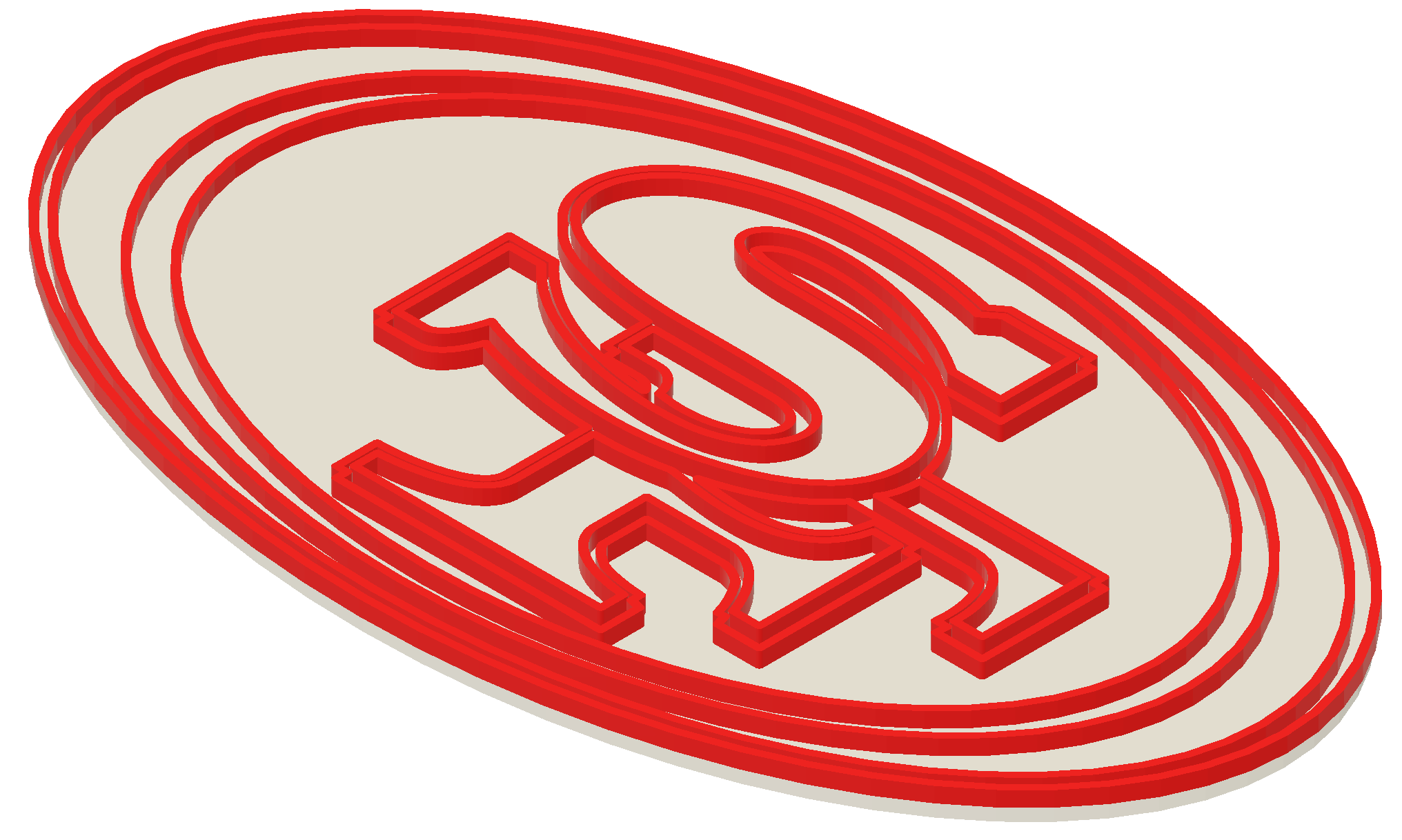

$ mbos test.svg outline.step --seal --seal-color #FF0000 --seal-base-color #FFFFFF
$ mbos test.svg relief.step --relief

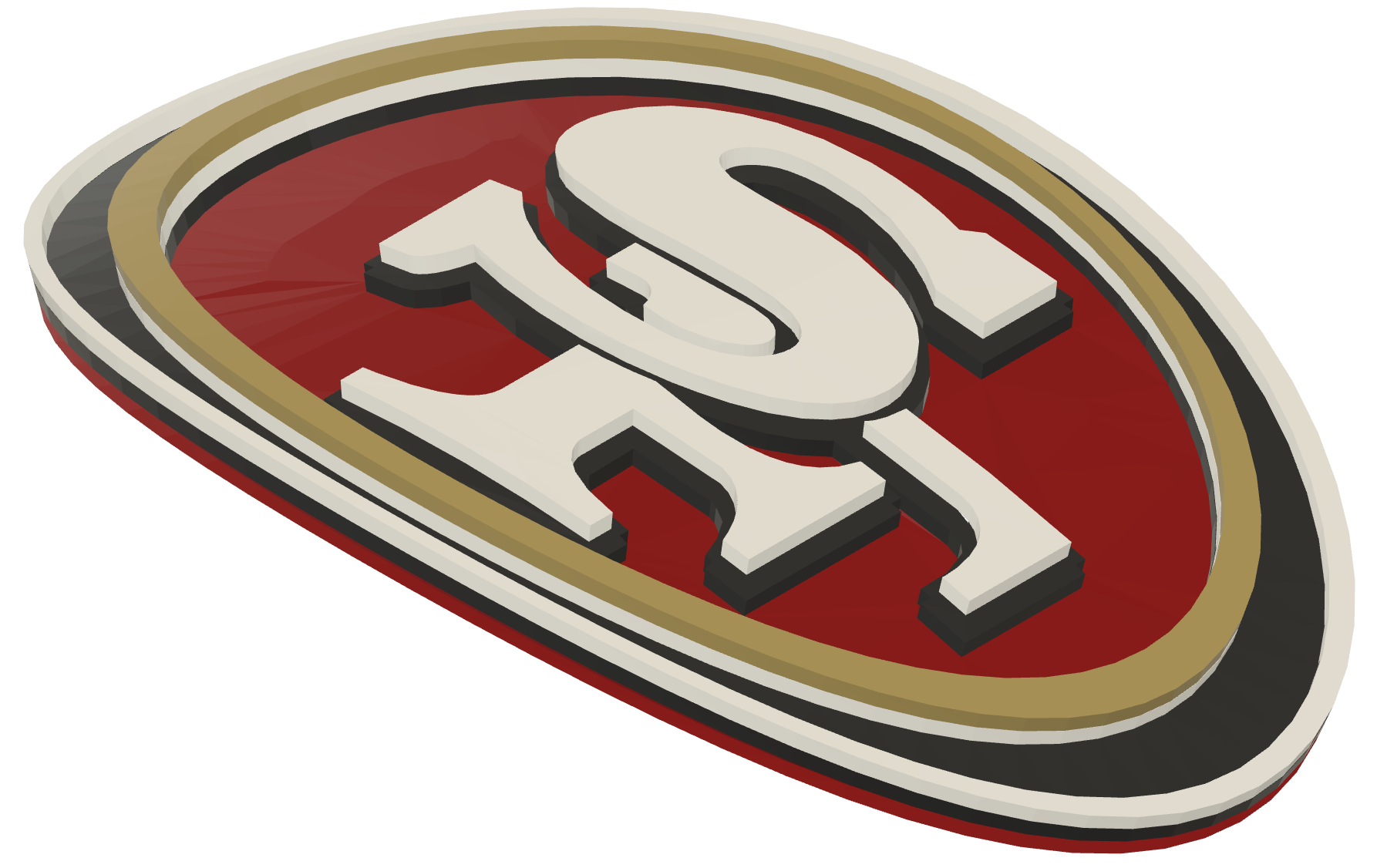

$ mbos test.svg curved.step --curve --curve-angle 50

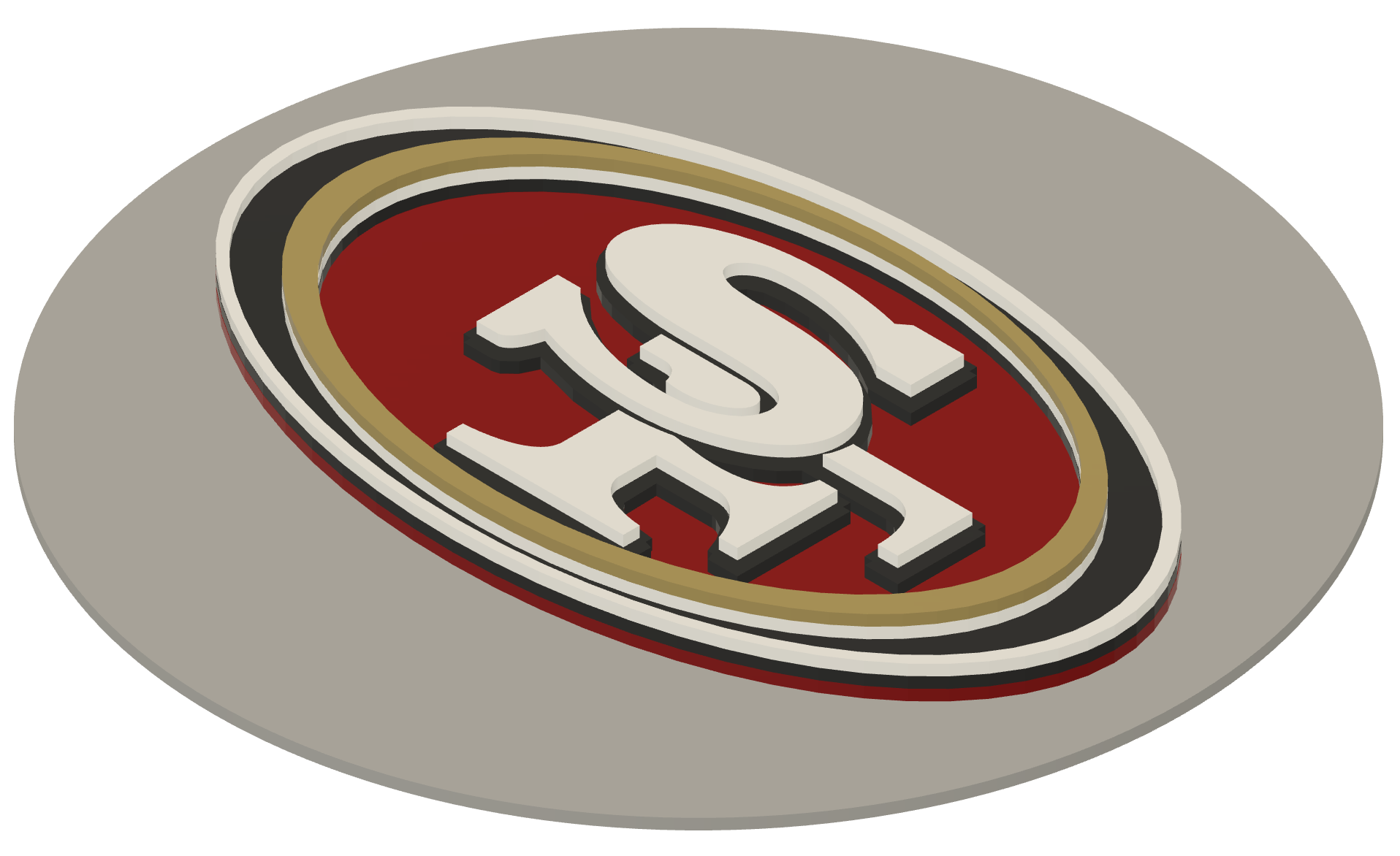

$ mbos test.svg base.step --base --base-border 0.1 --base-color #AAAAAA

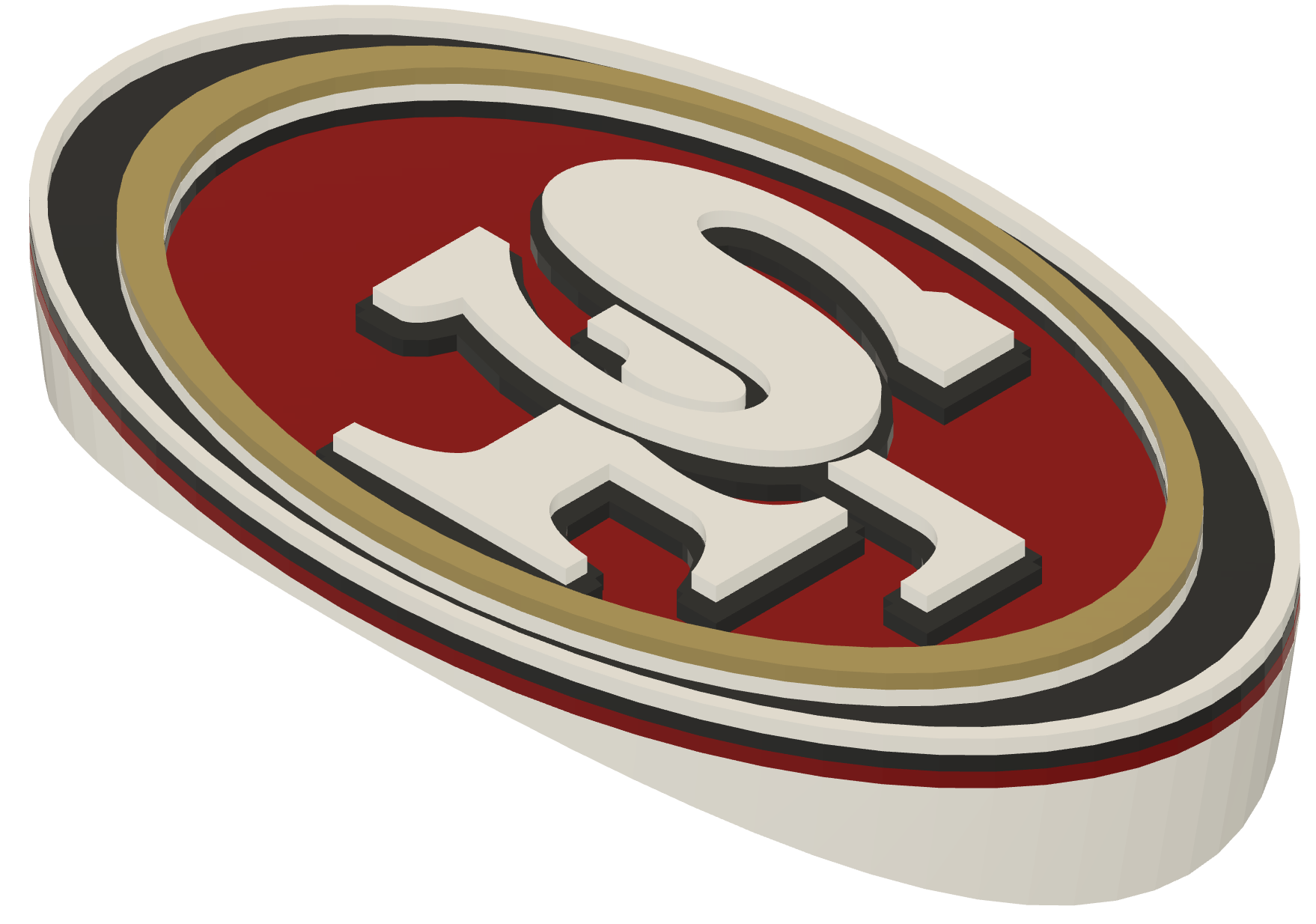

$ mbos test.svg base-curved.step --base --base-shape outline --base-curve --curve-angle 50
| Single Layer | Multi Layer |
 |
 |
| Outline mode | Wrap around curved surface |
 |
 |
| Add a base layer | Add a curved base to flat multi layer model (base with minimal filament swap) |
 |
 |
| Per color multi layer (3D print with minimal filament swap) | |
 |
https://github.com/hackorama/mbos
Python app built with LLM assisted code generation and leveraging excellent open source work of CadQuery, OpenCASCADE / OCP, vtracer, Pillow etc.

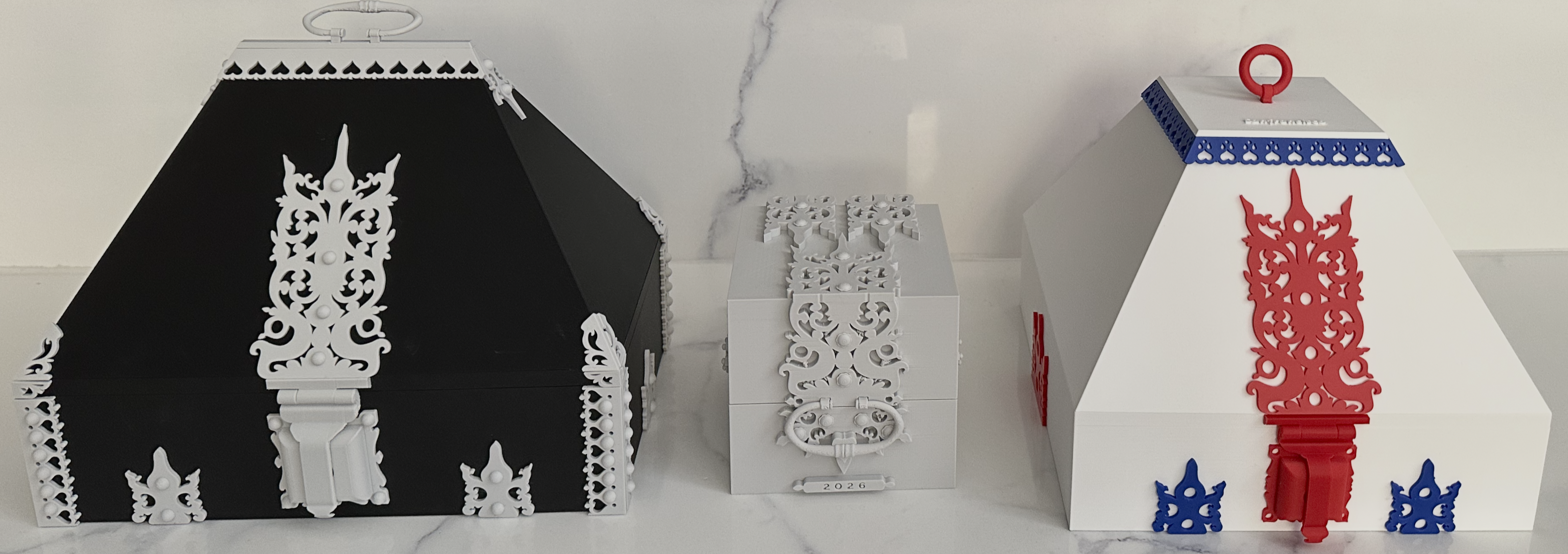

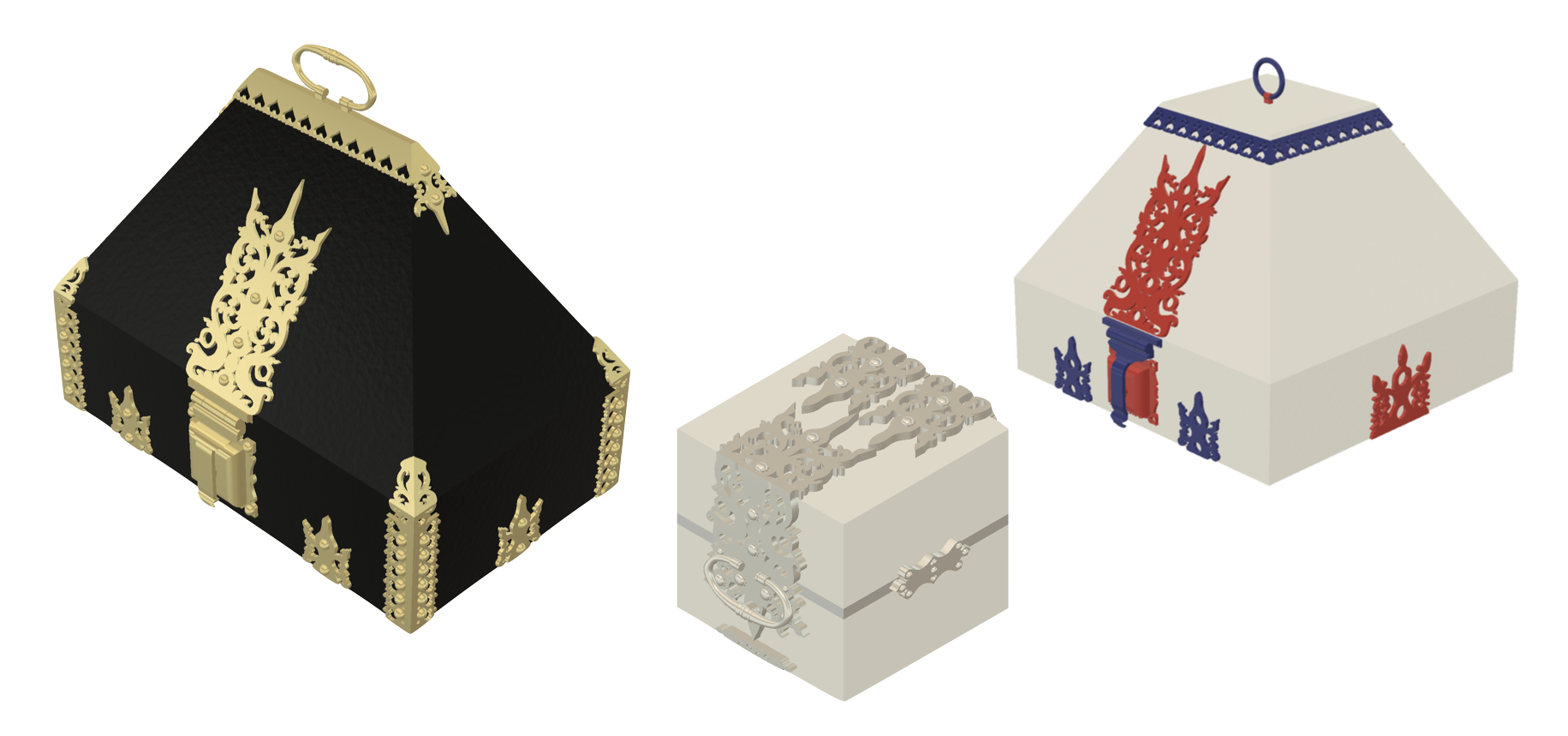

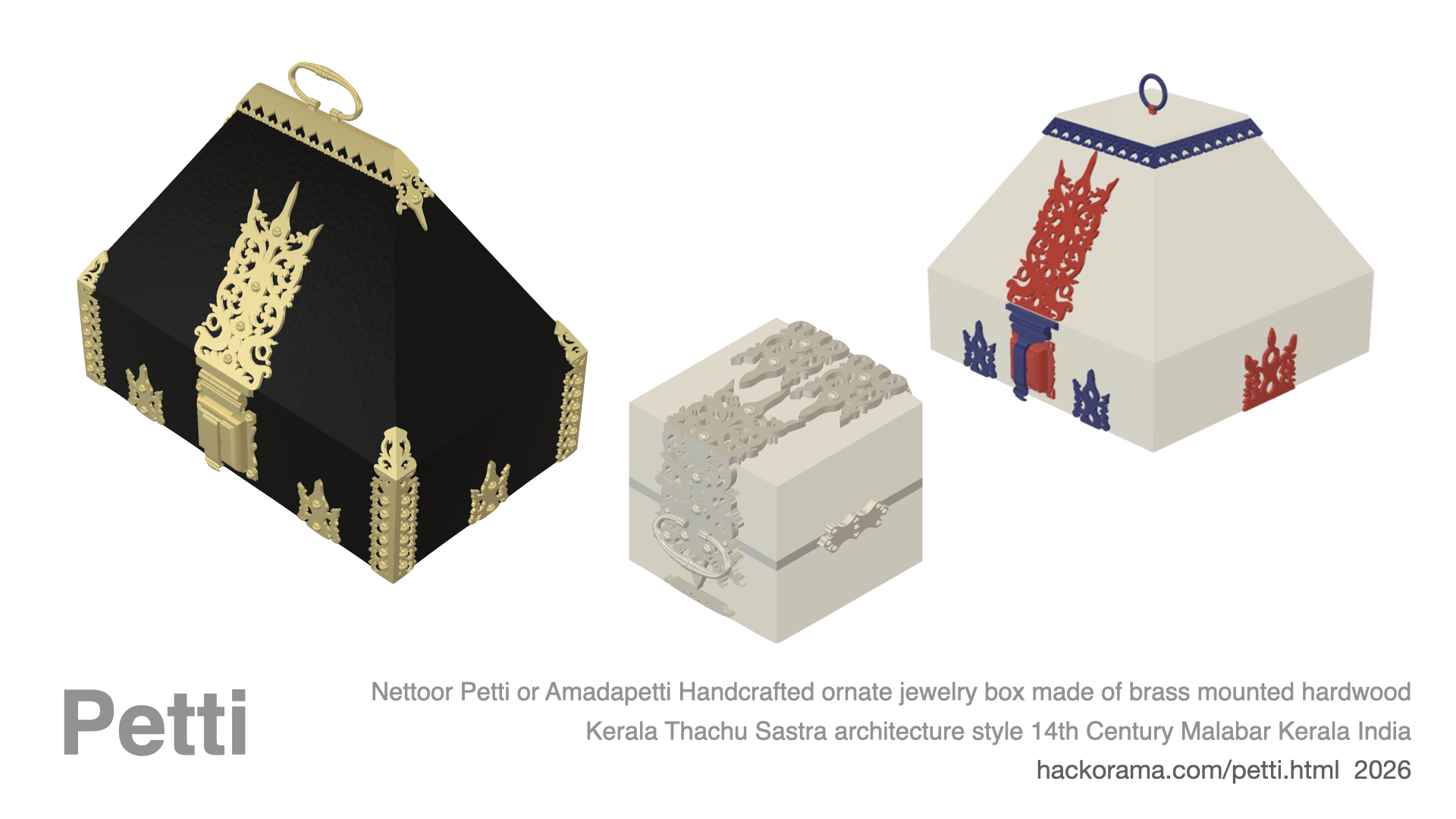

Petti Design (PDF)
Hand crafted ornate jewelry box made of brass mounted hardwood following the traditional Kerala Thachu Shastra architecture style, originating from the Malabar region of Kerala, India in 14 century.
Modeled in Autodesk Fusion 3D. Parametric design with a base model allows easy design variations.

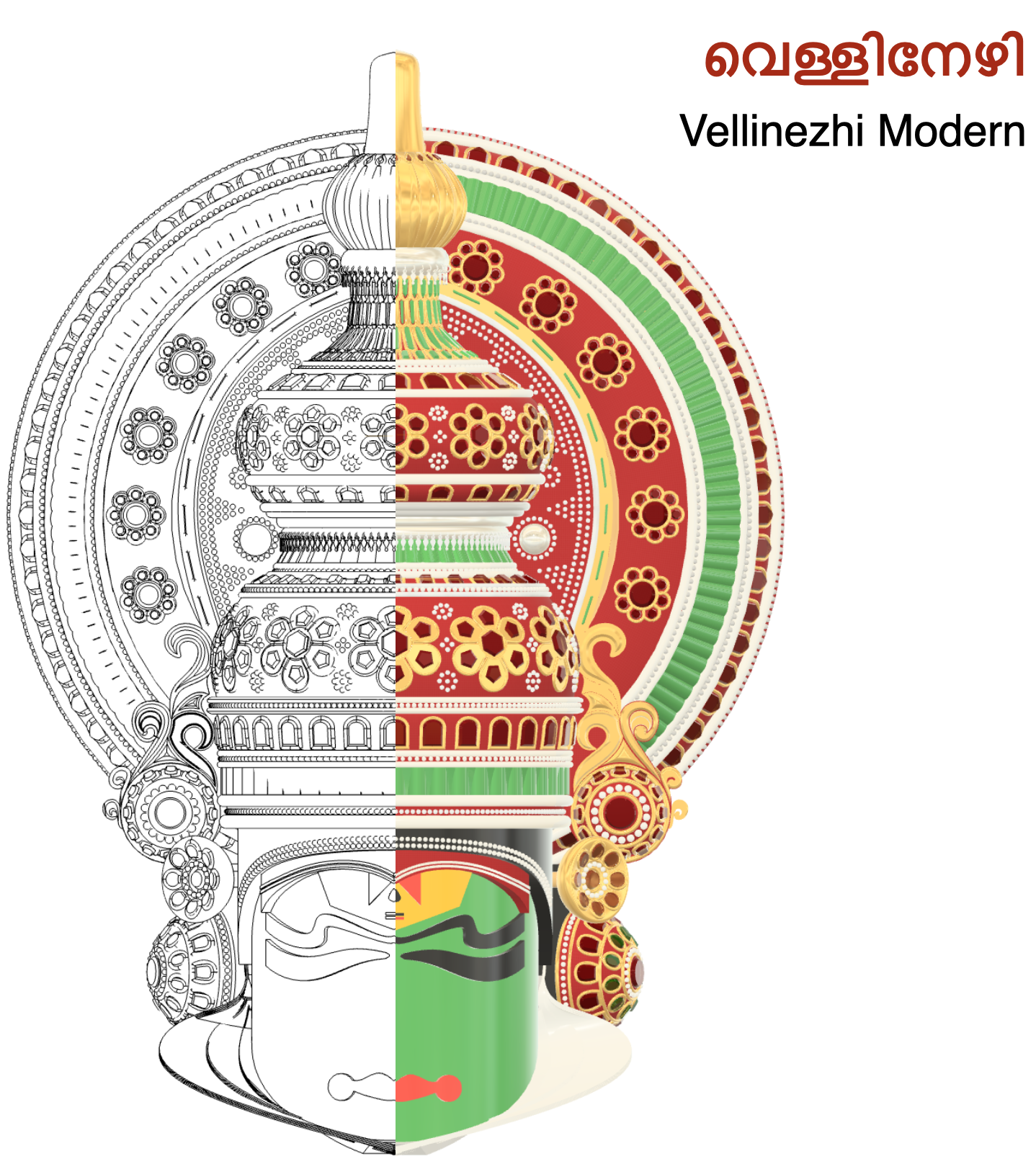

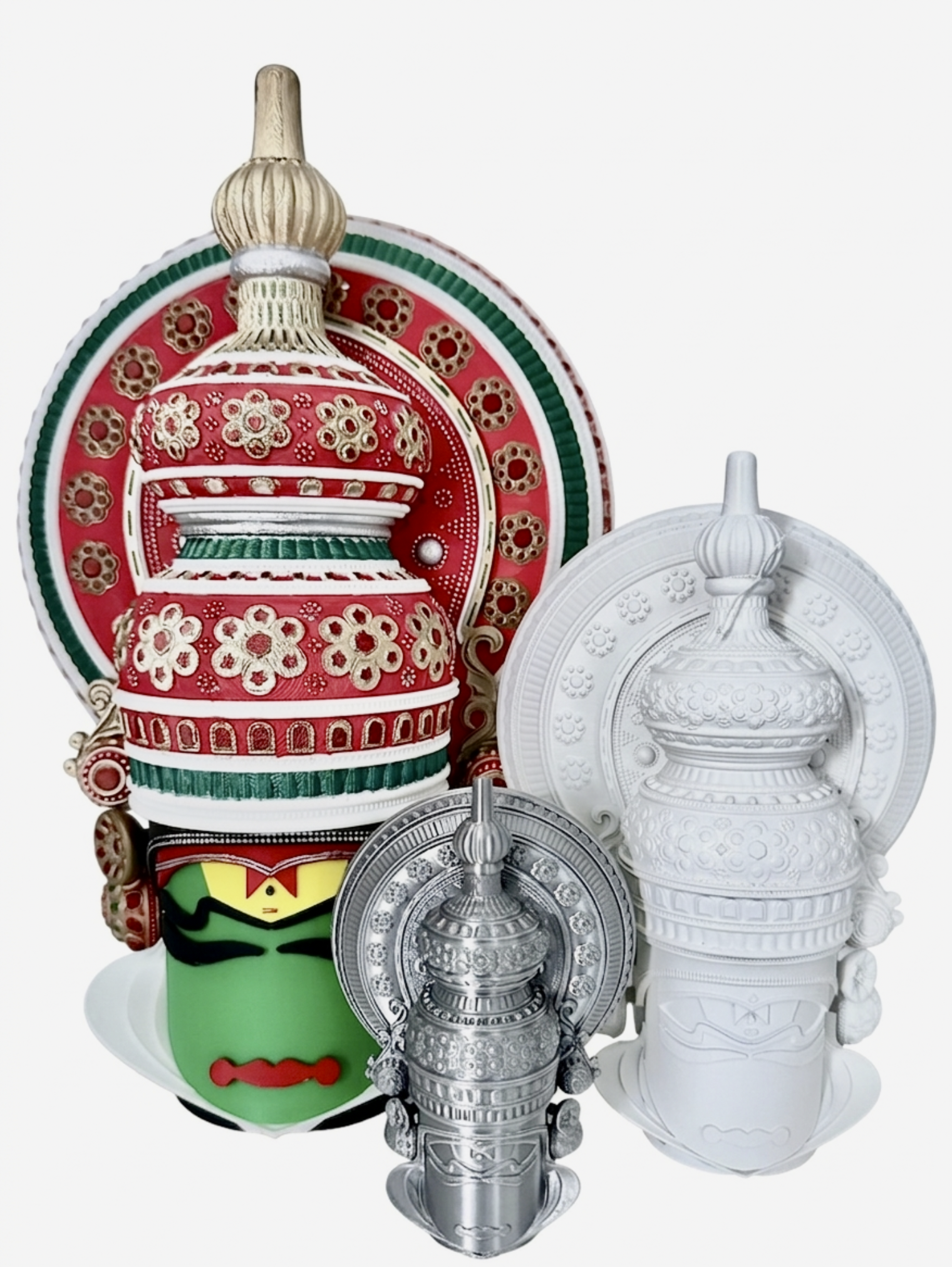

Vellinezhi Modern - Kathakali headgear, designed in the classic style established in Vellinezhi, Palakkad in the 1960s, incorporates a few modern embellishments to leverage parametric solid modeling.

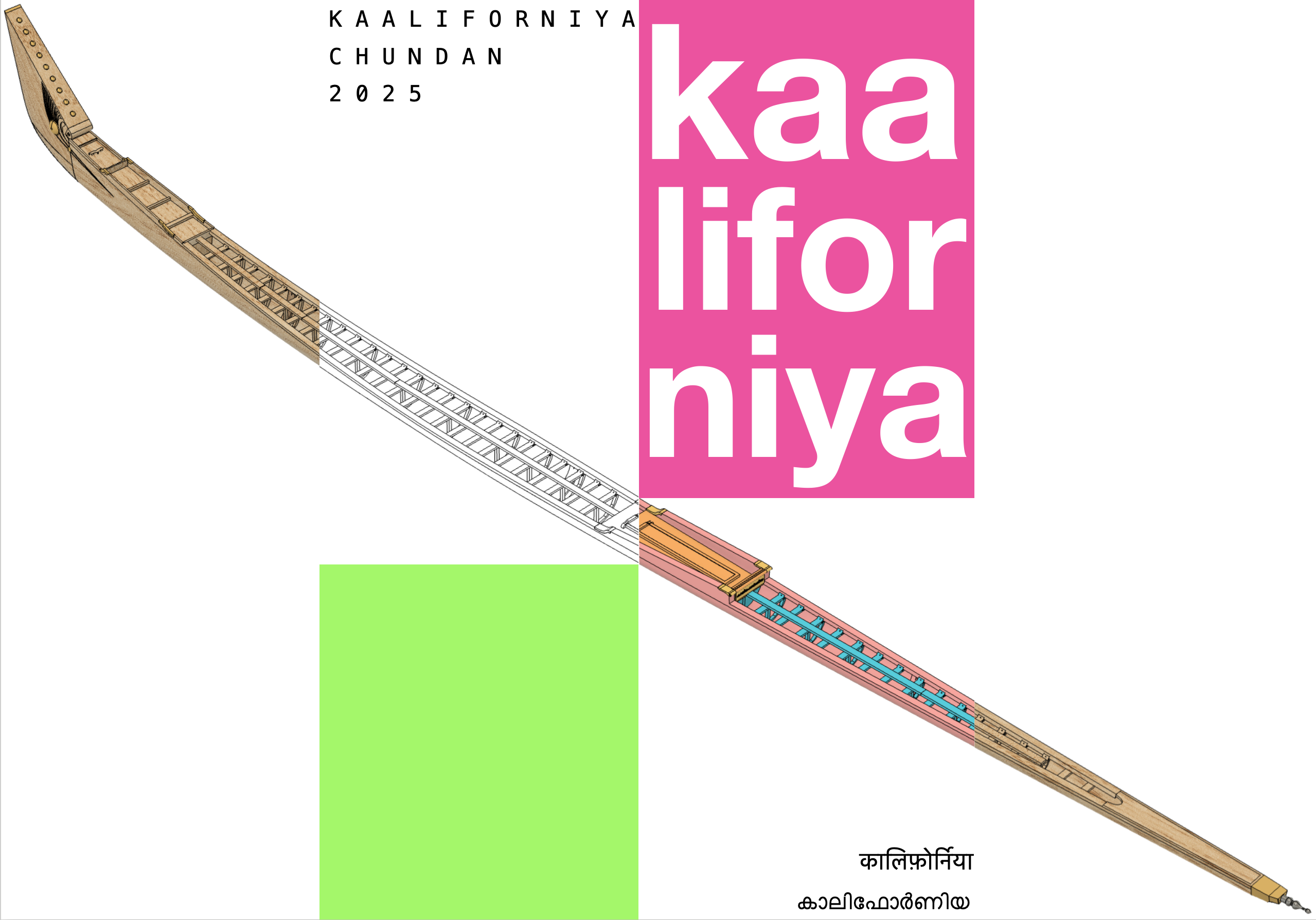

Kaaliforniya Design Booklet (PDF)

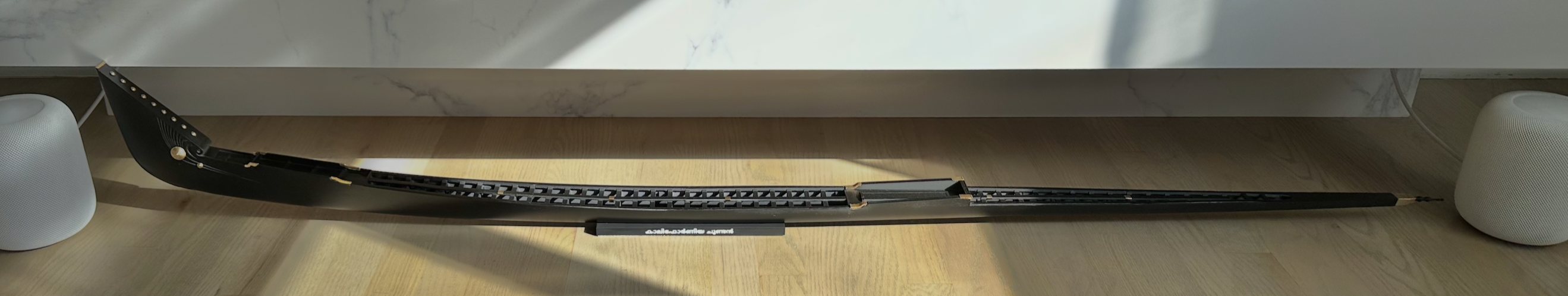

Modern day racing Chundan Vallam design with lower stern and bow height, a thinner hull profile that is 'U' shaped compared to older 'V' profile. Dimensions follow traditional design and is within Nehru Trophy boat race guidelines. Ornamental designs follow the traditional “navagraha” and “churul” patterns updated for modern sensibility. Seats more than 90 main rowers and supports the full 111 team size.

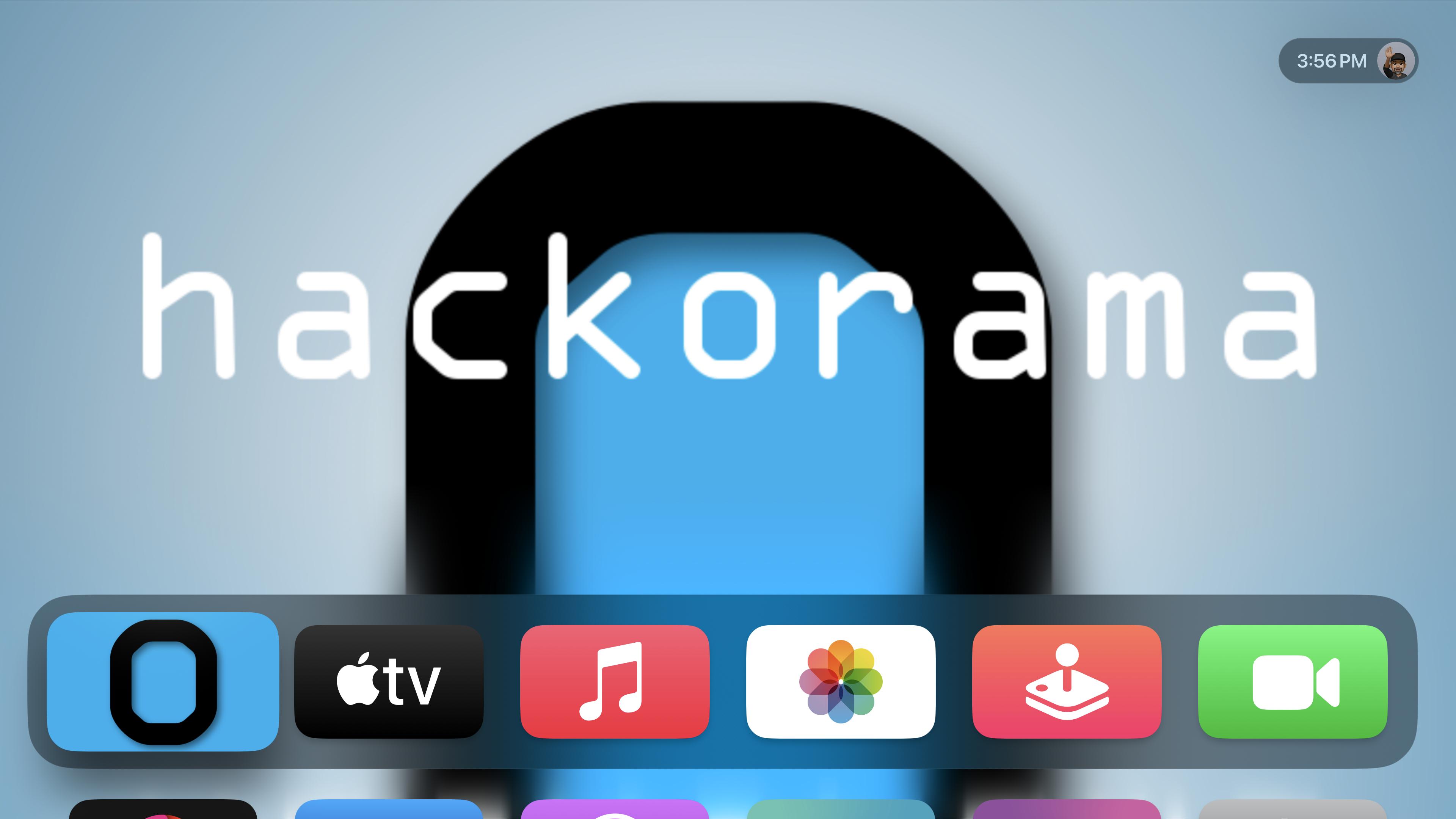

More details at TVHomeScreen project on GitHub
ePaper Pi Calendar - An ePaper calendar project using Raspberry Pi Zero W
More details at ePiCal project on GitHub

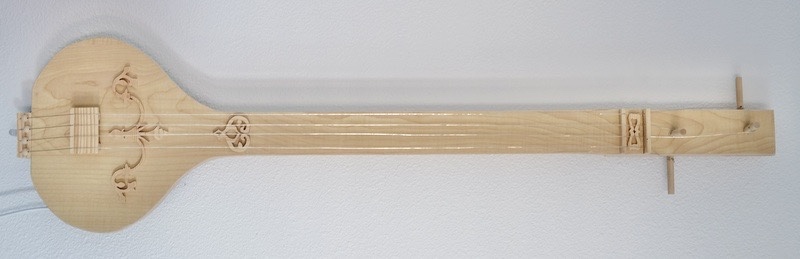

A wood working and microcontroller project to create a touch sensor electronic chord version of Indian string instrument thamburu aka thanpura, tambura, tanpuri
Get the wood work templates and full microcontroller source code at Thamburutronica project on GitHub
New hackorama project m.core published 🚩
Hackorama is now SSL enabled using Let's Encrypt.
Development shell profile for bash, vim, git consolidated as devprof with easy install update on any server quickly.
bash <(curl -s https://raw.githubusercontent.com/hackorama/devprof/master/devprof.sh)
New hackorama project pushed to github, Plethora

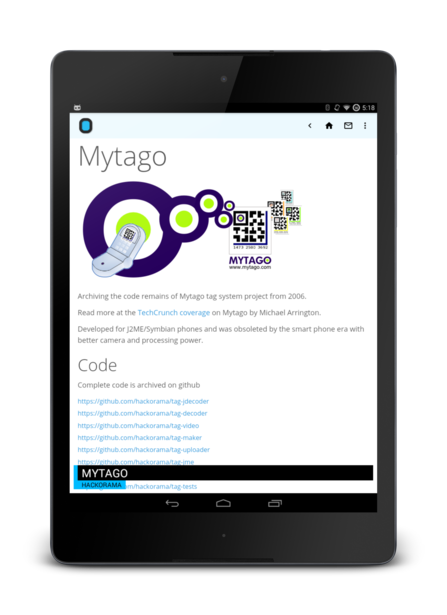

Published Hackorama App on Hackorama App Store on Google Play
Now running on the cloud via Digital Ocean
[kitho@valyrian ~]# dig hackorama.com ANY +short
162.243.123.74
ns3.digitalocean.com.
ns1.digitalocean.com.
ns2.digitalocean.com.
ns1.digitalocean.com. hostmaster.hackorama.com. 1447211821 10800 3600 604800 1800
10 mailstore1.secureserver.net.
0 smtp.secureserver.net.
[kitho@valyrian ~]#
15 Years of Hackorama, live since 1999-09-03 19:20:25
Redesigned as a minimal, fluid, mobile first site, using Pelican.
Get code from GitHub
Read the key, element pairs from a java properties file
while natural_line:
# skip blank lines and comment lines, process only valid logical lines
if natural_line.strip() and COMMENT_LINE.match(natural_line) is None:
logical_line = natural_line.lstrip().rstrip(LINE_BREAKS)
# remove multi line delim and append adjacent lines
while MULTI_LINE.match(logical_line):
logical_line = logical_line.rstrip()[:-1] + propfile.readline().lstrip().rstrip(LINE_BREAKS)
pair = SPLIT_DELIM.split(logical_line, 1)
if len(pair) == 1: pair.append(DEFAULT_ELEMENT)
pair = [re.sub(VALID_ESC_DELIM, '', item) for item in pair]
pair = [re.sub(ESCAPED_ESC_DELIM, ESC_DELIM, item) for item in pair]
pair = [unicode(item, 'unicode_escape') for item in pair]
result[pair[0]] = pair[1] # add key, element to result dict
natural_line = propfile.readline()
return result
Follows the java properties file format and tested against the Java 6 version of java.util.Properties
Get code from GitHub
After almost 10 years, many bug fixes and users around the world, moving AnyOption to GitHub

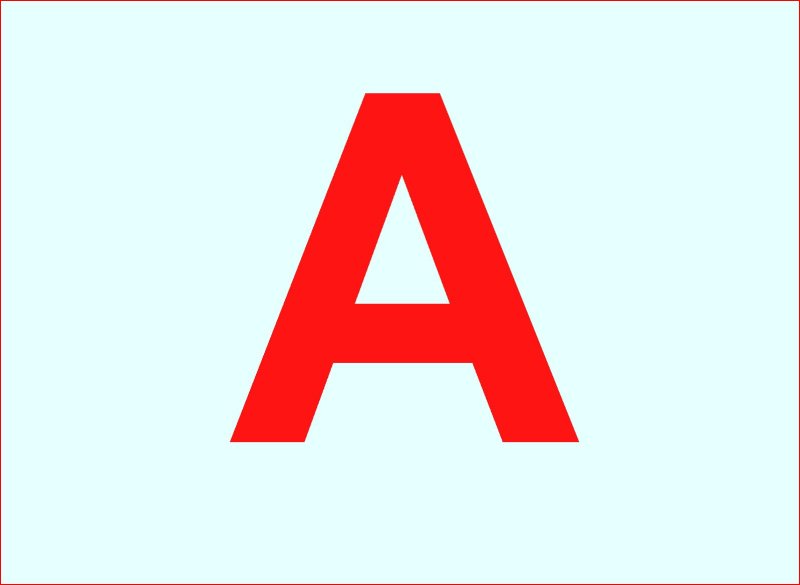

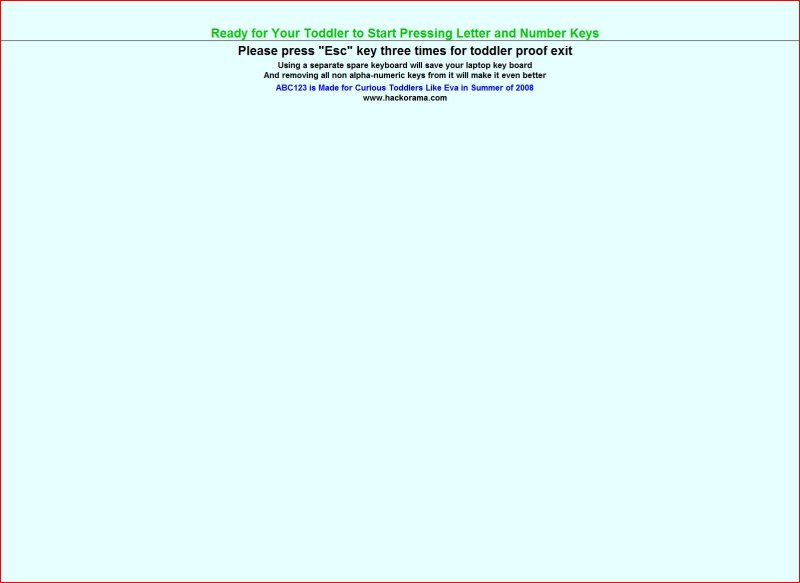

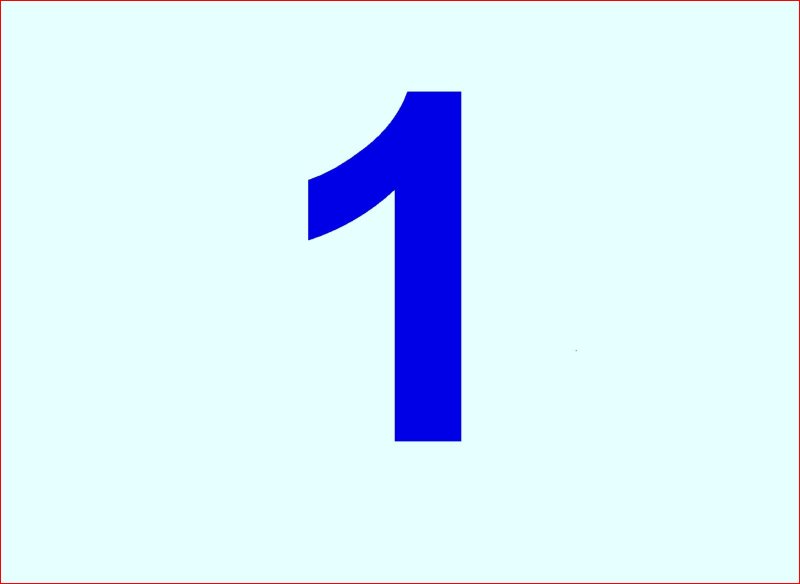

Created for my toddler to play on the laptop and learn alphabets and numbers.
This was way before tablets and thousands of applications for kids.
Bare bones single window application that will go full screen and will only respond to alphanumeric key strokes and won't lose focus.
Get Tag Video Decoder from GitHub
Archiving the code remains of Mytago tag system project from 2006. Developed for J2ME/Symbian phones and was obsoleted by the smart phone era with better camera and processing power.
See all related projects and information at the Mytago page
This is a technology demonstration of tag image processing from a live video stream, using the webcam on a windows system as the video source.
Download VDecode.exe demo binary and try out on any windows laptop with webcam.
Use this demo tag as input
